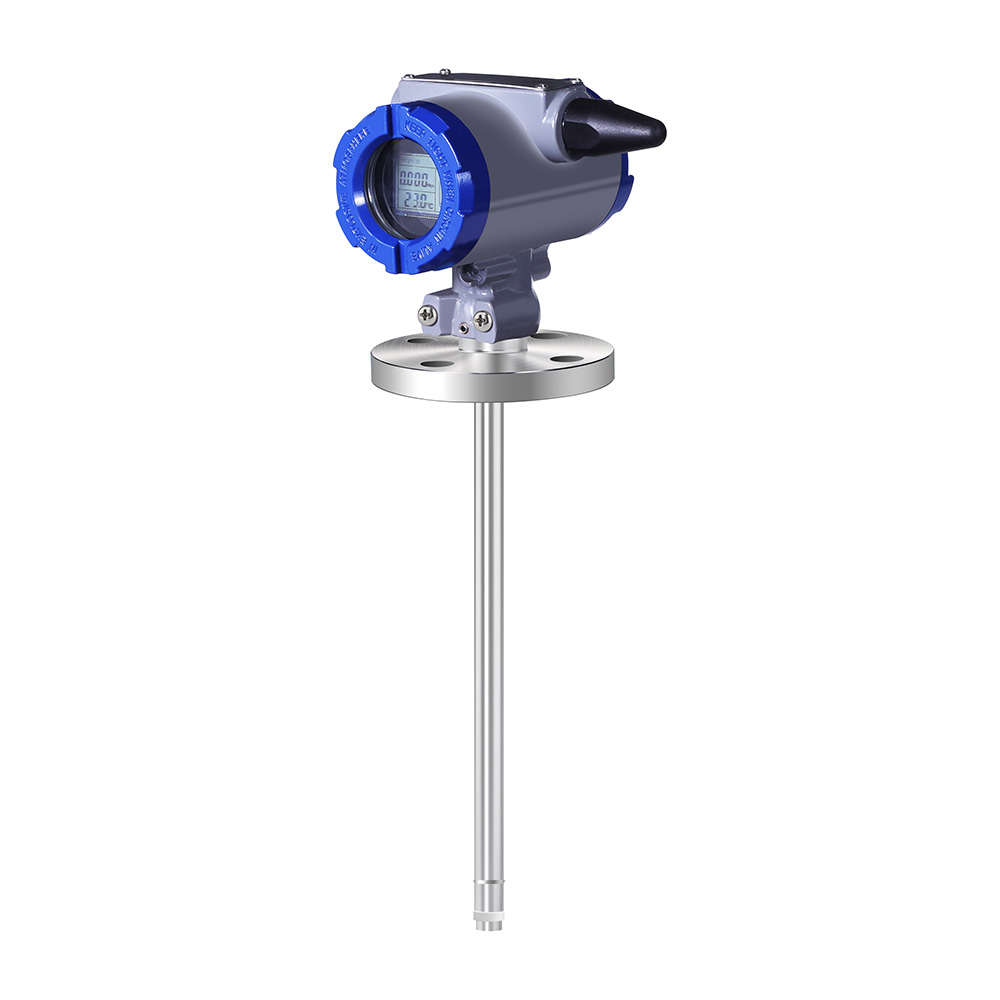

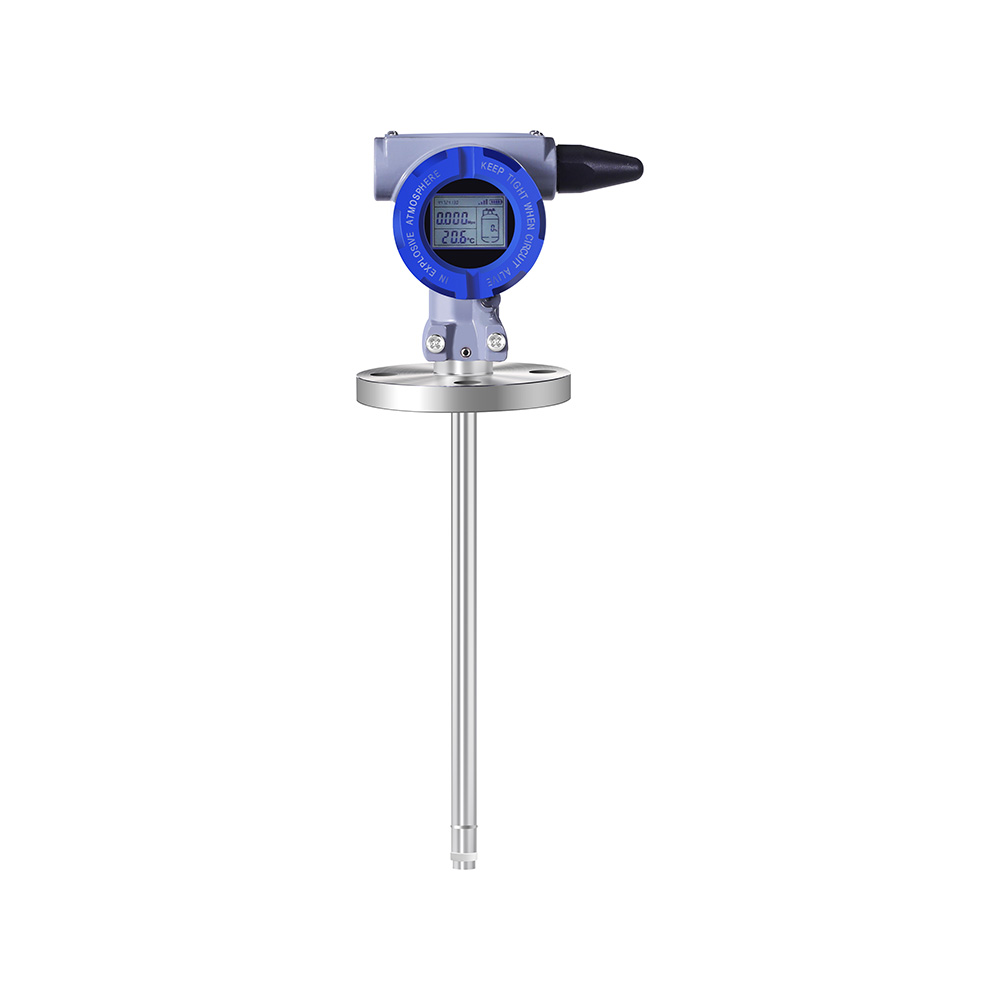

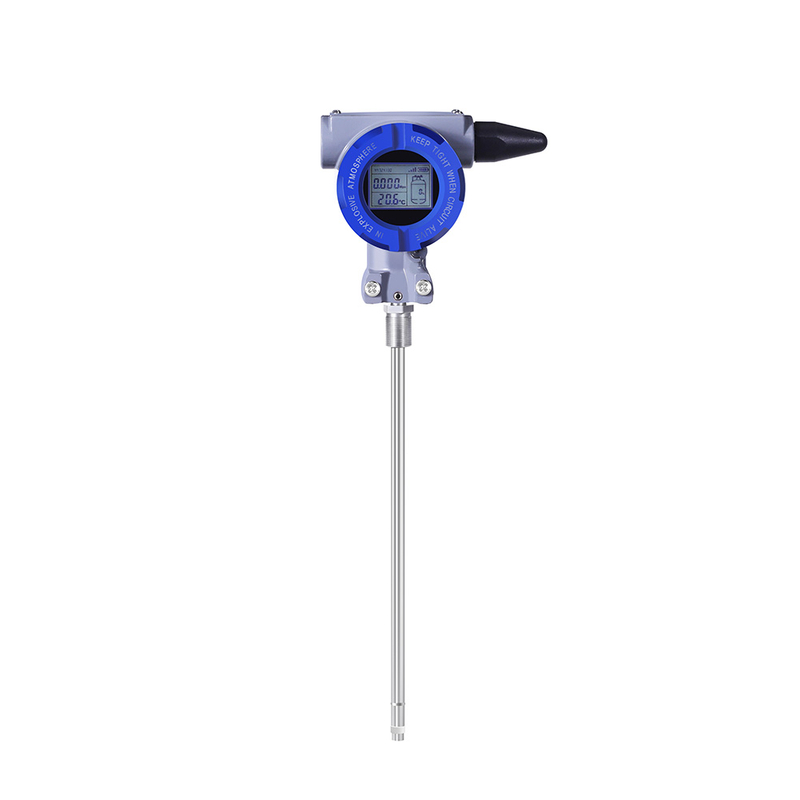

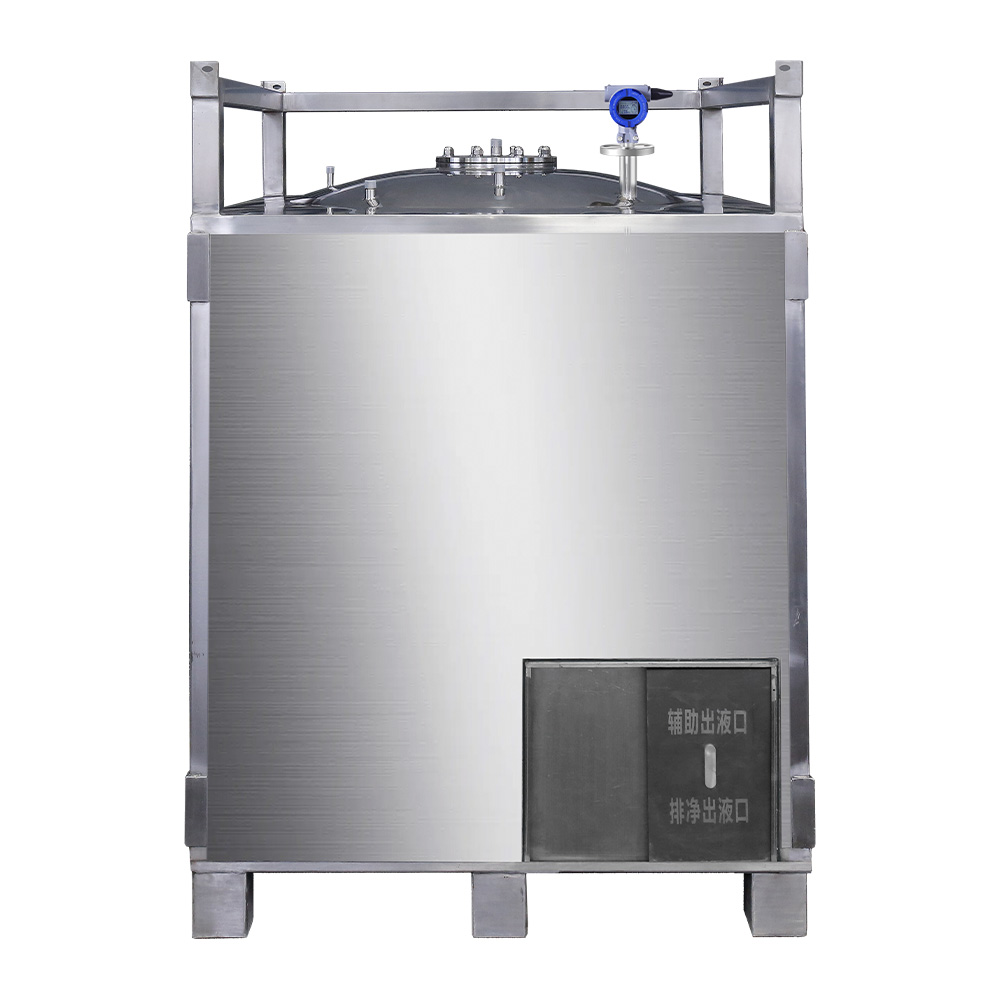

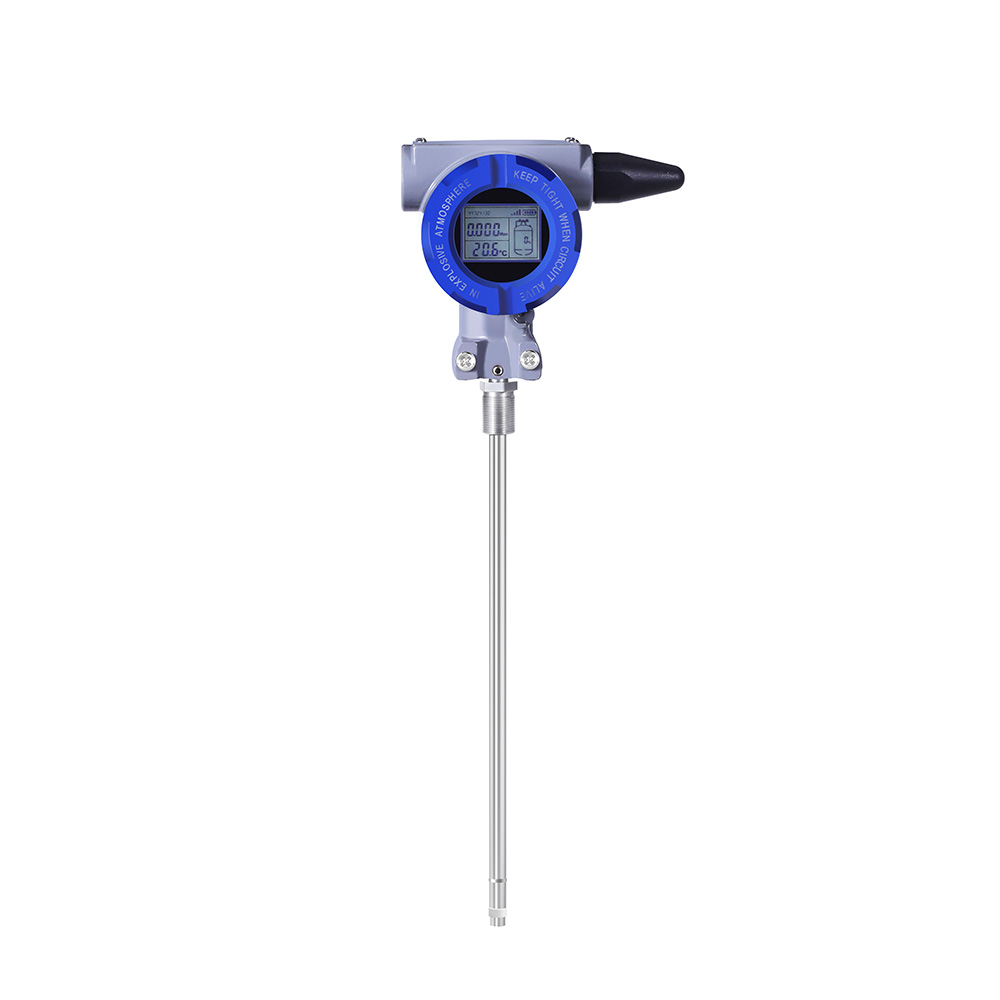

CM10 smart ton meter

Say goodbye to the four major problems of traditional operation and maintenance

Pain Points

Monitoring depends on the site

Isolation of various types of data

Low labor efficiency

Routine maintenance is cumbersome

Why choose us?

Product advantages

Product Advantage

All in one screen

Integrated Data View

Intelligent Cloud

Cloud Connectivity

Platform compatible

Platform Compatible

Quality certification

Quality Certified

product details

Product Details

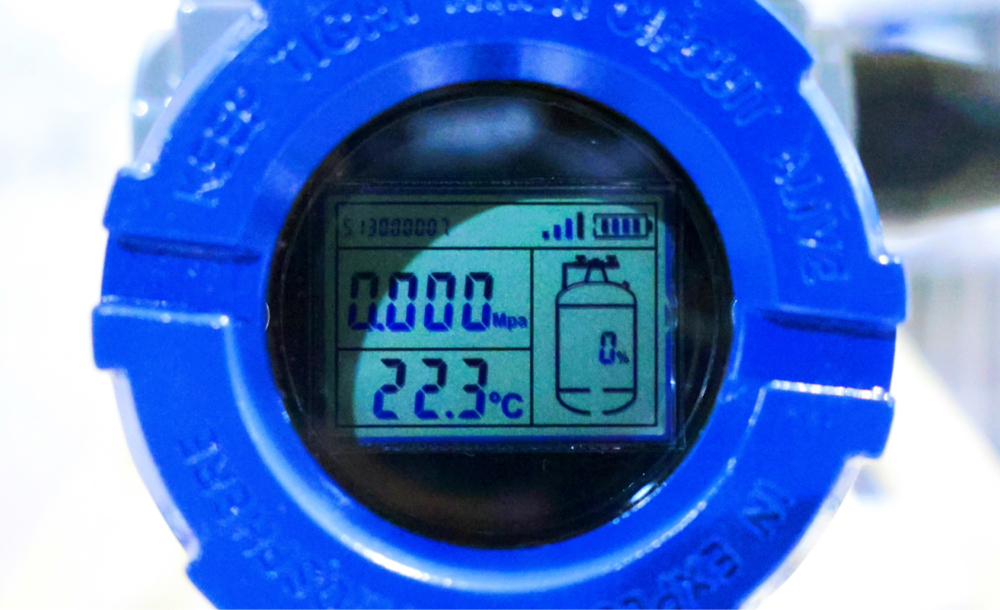

Simple screen display

Displays the status information collected by the instrument and can locally display alarms for high and low thresholds of measured values.

Cloud platform information tracking

Customizable collection interval, storage frequency and upload frequency, supports local information storage, and delayed reporting of cached data

Intelligent analysis system

Monitor multi-dimensional data in real time, realize intelligent linkage analysis, and provide statistical reports

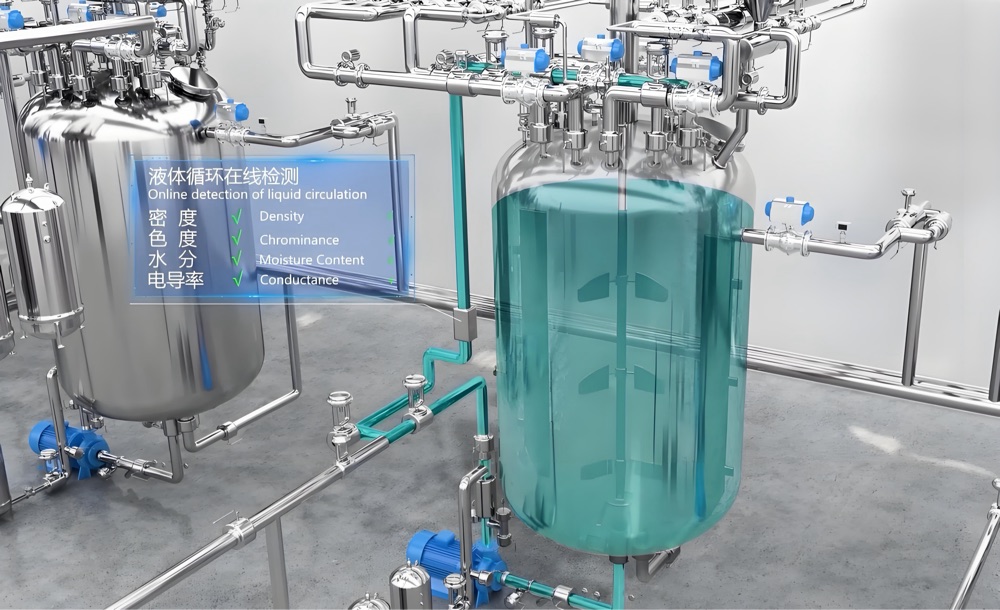

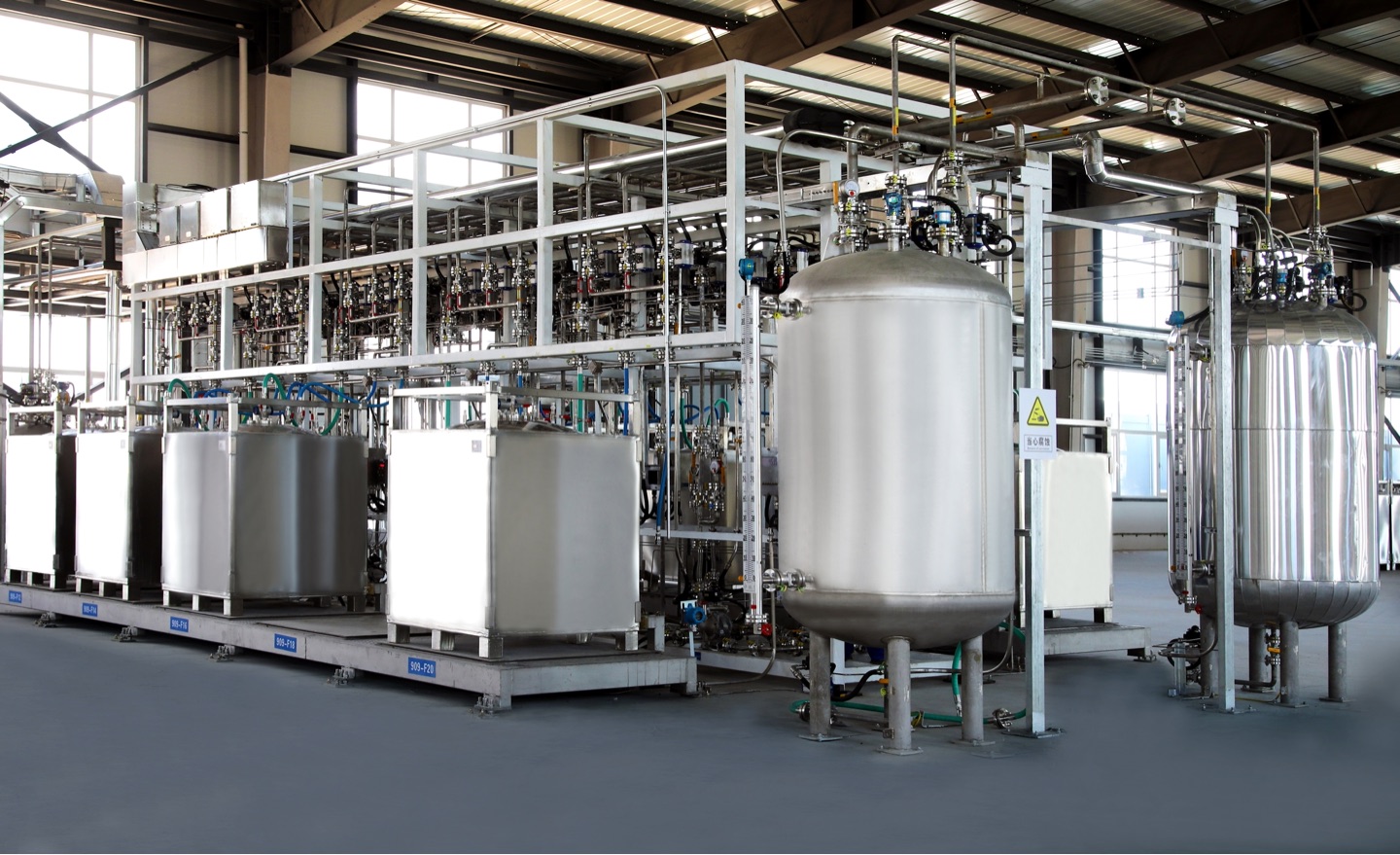

Scope of application

Scope of Application

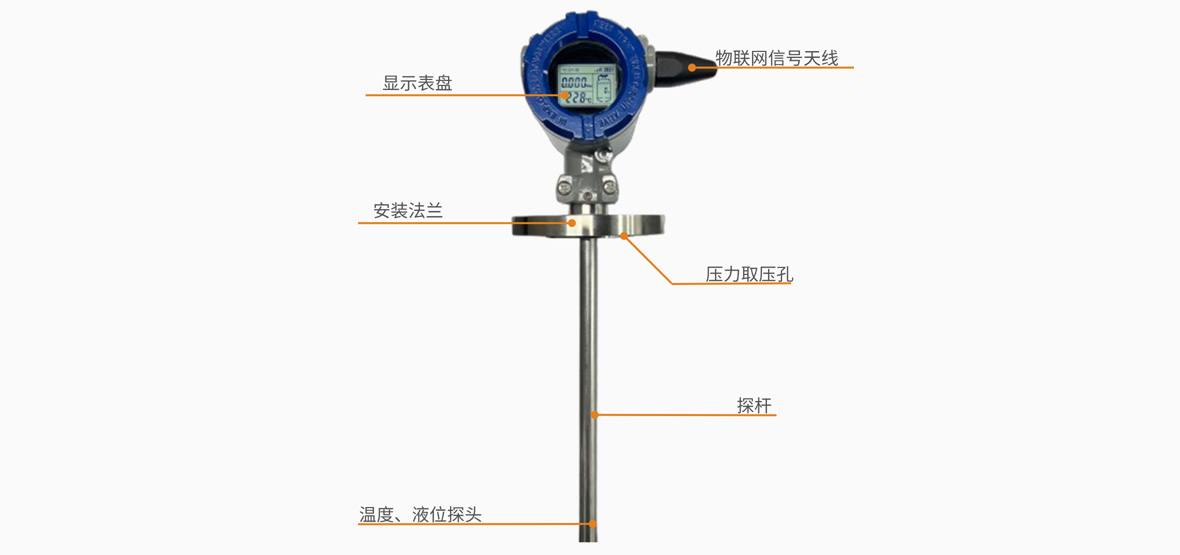

Product analysis

Product Analysis

Product parameters

[Product name] CM10A/CM10B/CM11A/CM11B intelligent integrated meter

[Product material] Meter housing: cast aluminum spray-painted Measuring probe: S304

[Power supply battery] Lithium sub-battery (non-rechargeable) 38000mAh

[Probe length] 800mm/1200mm length can be customized

[Temperature accuracy] -20℃~99.9℃(±0.5℃)

[Pressure accuracy] 0-0.7MPa (±0.5%FS)

[Local storage] Capacity 30,000 pieces of data

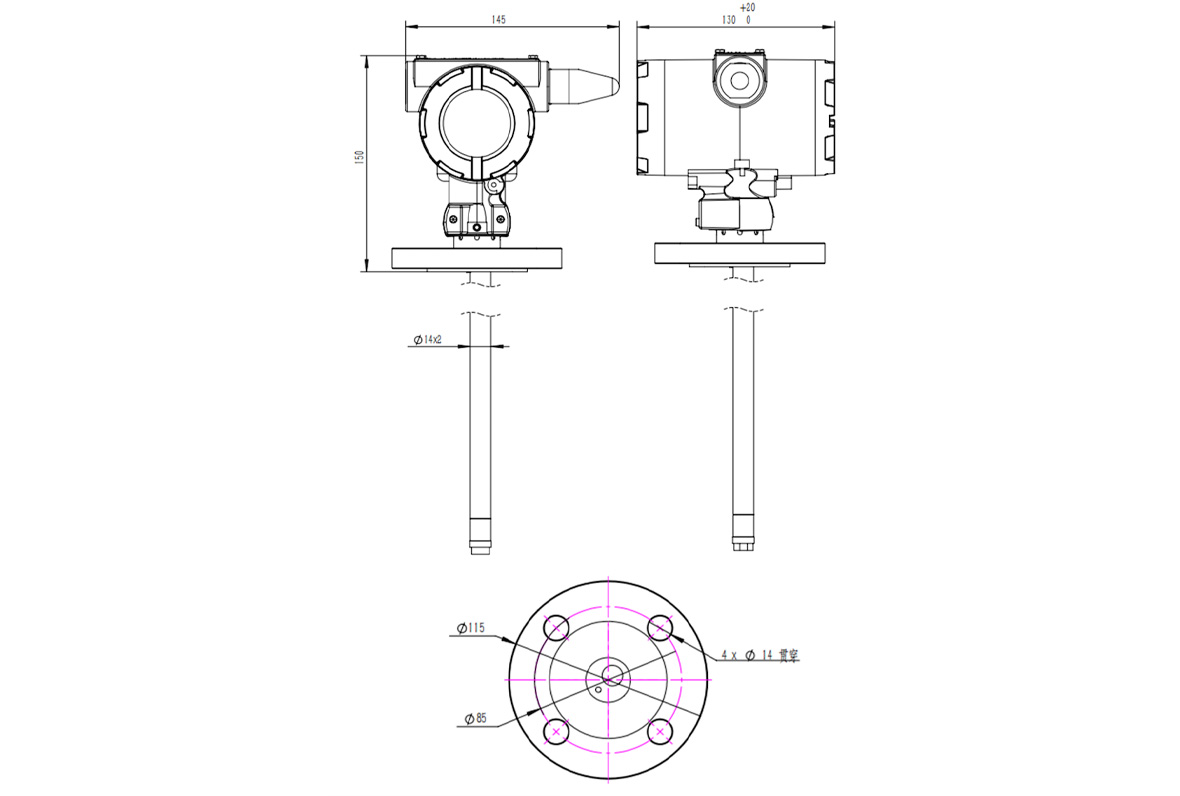

Product size

Application Dimensions
