Intelligent Logistics

Multi-Parameter In-Transit Cargo Monitoring (Temperature, Pressure, Level, Positioning)
Products & Solutions Intelligent Logistics
Challenges We Solve
No real-time remote monitoring
Data silos with low utilization
Manual analysis leads to low efficiency
Complex maintenance with high costs

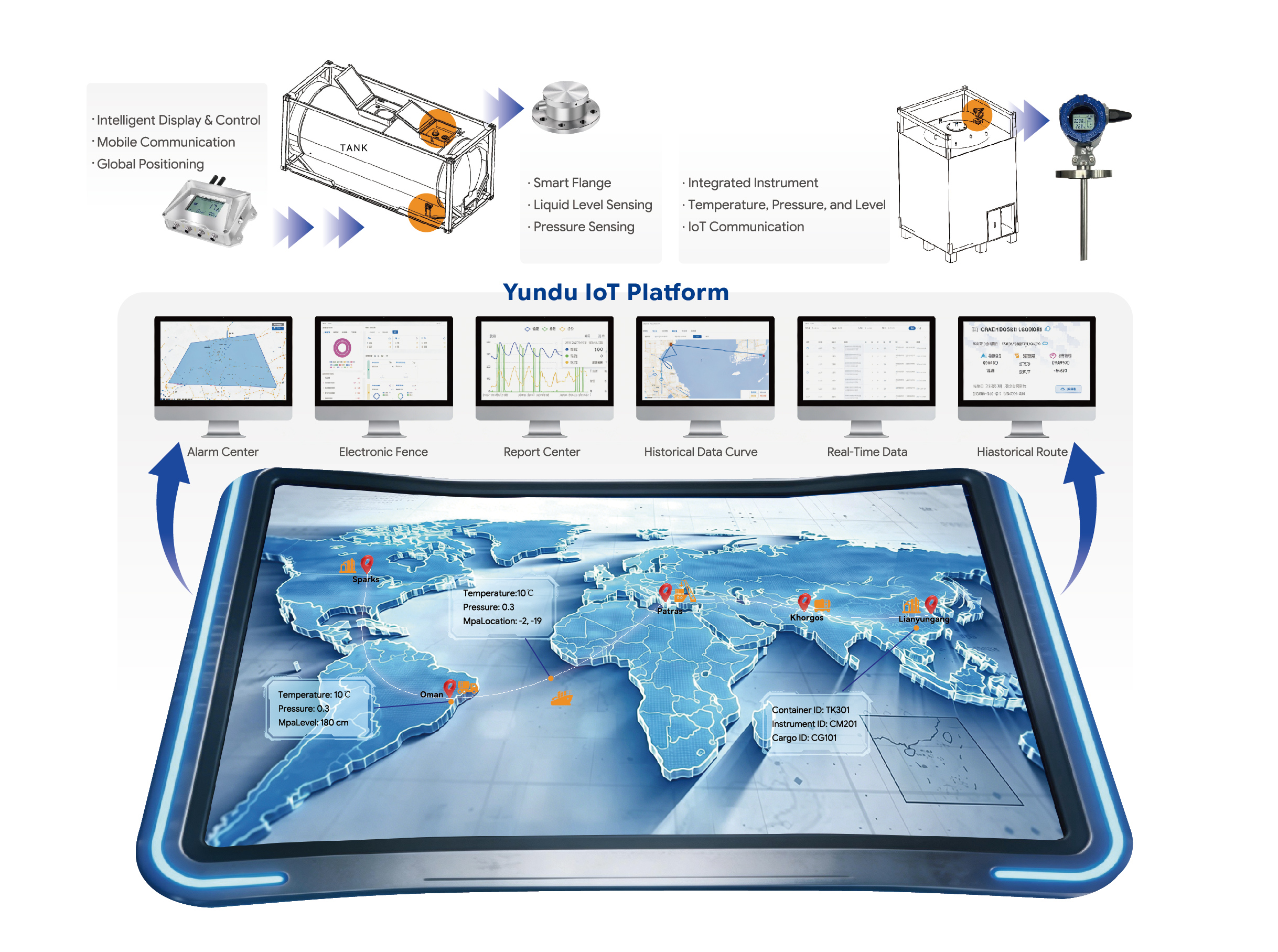

Intelligent logistics
24/7 Uninterrupted Monitoring with Multi-Dimensional Data Linkage Analysis
  • 24-hour monitoring. multi-terminal access
  • Multi-dimensional data analysis & diverse reports
  • Remote inspection & diagnosis,lifetime OTA.
  • Extended battery life,professionally certified

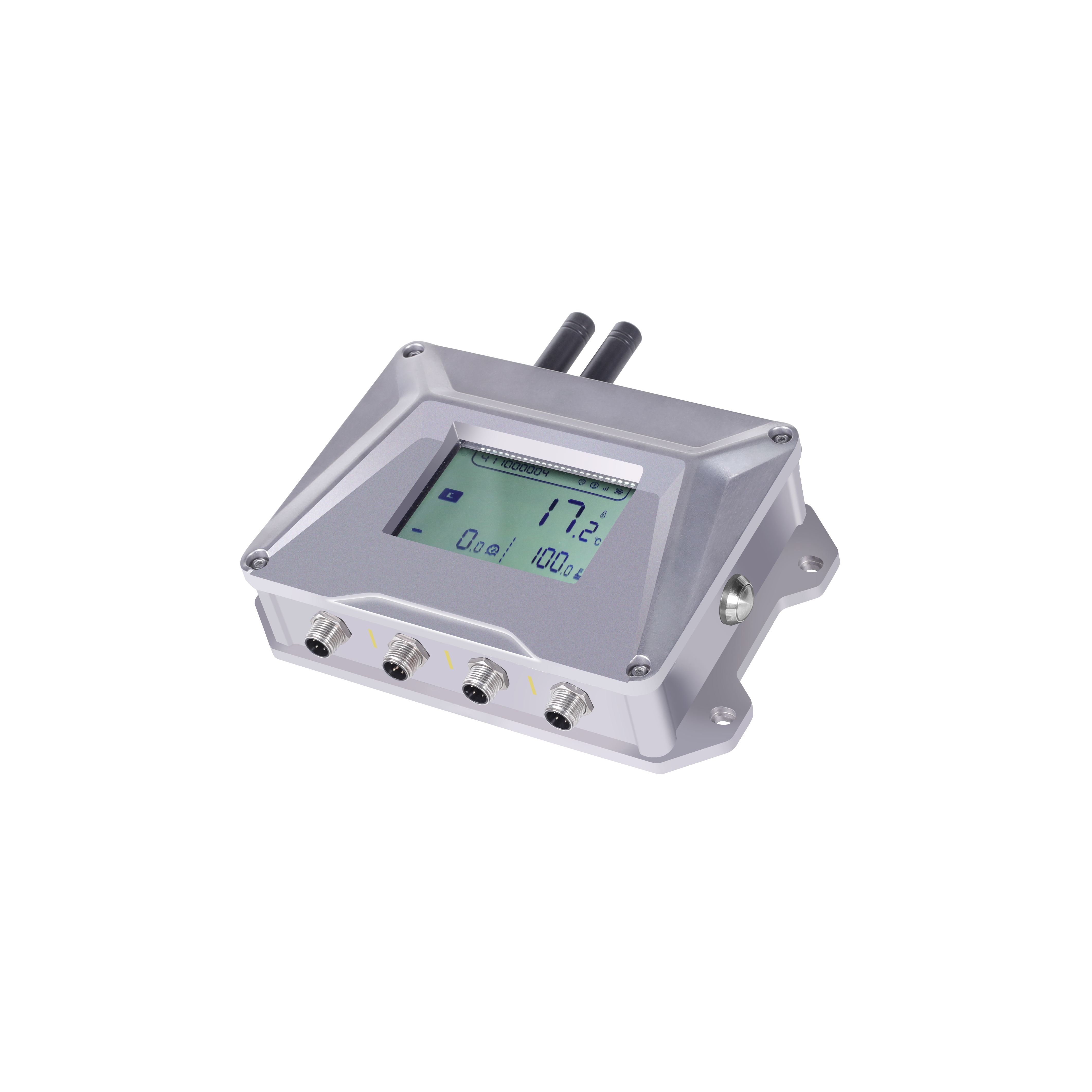

CM10 Intelligent Integrated Instrument
Product Overview

The CM10 Intelligent Integrated Instrument is a multi-function instrument designed for small tanks, integrating temperature, pressure, liquid level, and positioning.

Product Features
  • Multi-Function Integration
    Temperature / Pressure /Liquid Level (Optional)/GPS
  • Ultra-Low Power Consumption
    Battery Life >2 years, Replaceable
  • High Reliability
    Validated via salt spray, Thermal shock,High/low temperature, Dual 85 aging,Long-term thermal cycling, Step temperature testing, and random vibration.
Product Specifications
Product Specifications Model Key Parameters
Physical Property Product material Meter Case : Cast Aluminium, S304
Mounting Interface Flange/Threaded (customisable)
Power Supply Lithium Battery, 38,000 mAh
Product Property Temperature Range/Accuracy -20℃ - 99.9℃（±0.5℃）
Pressure Range/Accuracy -0.1Mpa - 0.6Mpa（±0.5% F.S）
Positioning Global GPS/Base Station
Reliability IP Level IP65
Product Certification CE/ROSH/Ex-d IIC T6 Gb
Validity of Battery 2 years (1 recode/ 2 hours, configurable)
Network Communication - Global 4G

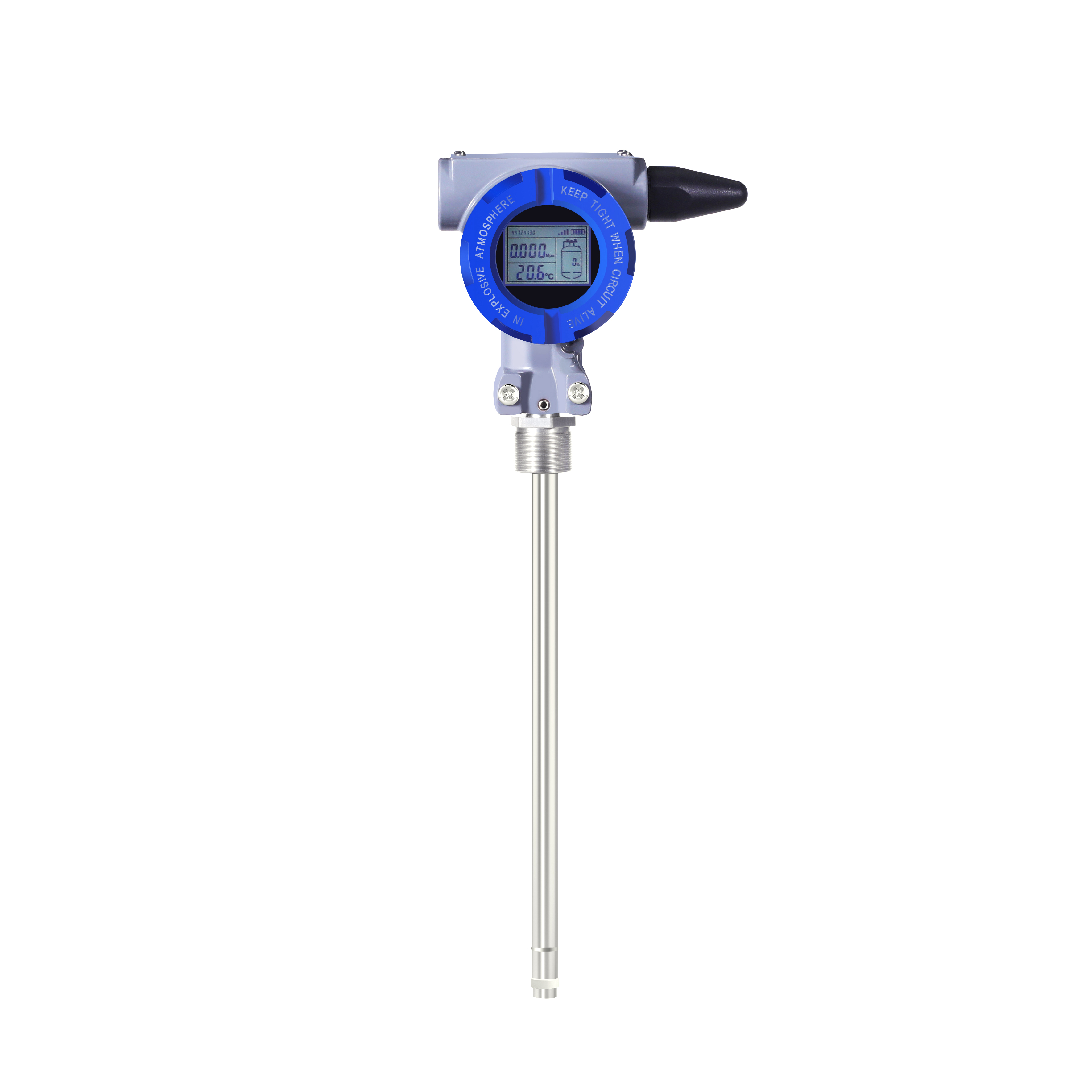

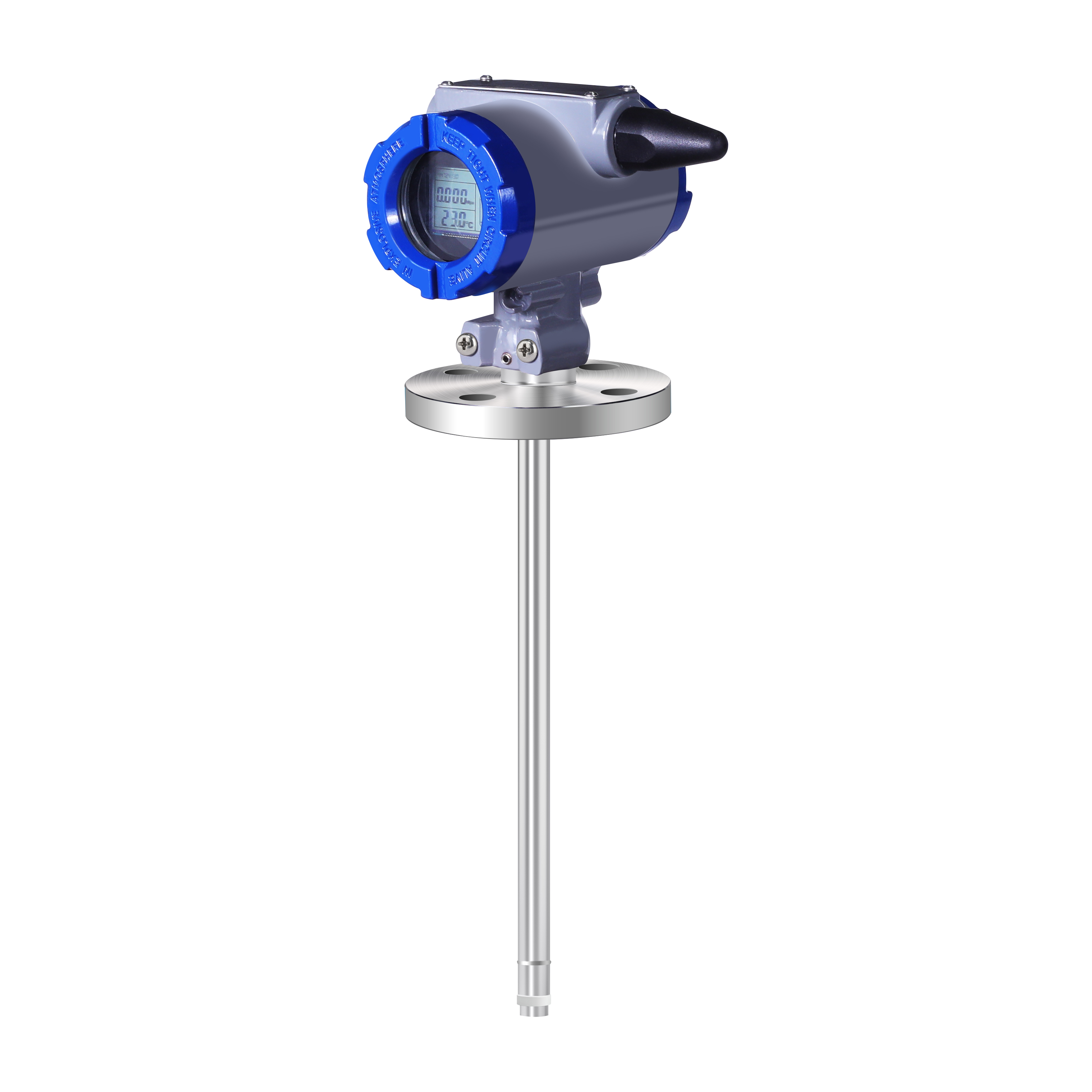

CM20 Intelligent Distributed Instrument
Product Overview

The CM20 Intelligent Distributed Instrument is a multi-function instrument designed for tank containers, solving the smart and IoT connectivity challenges of specialty chemicals during storage and transportation.

Product Features
  • Flexible Multi-Function Configuration
    Temperature /Pressure / Liquid Level/ GPS
  • Non-Contact Level Monitoring
    80GHz Millimeter-Wave Radar
  • High Reliability
    High Reliability Validated via salt spray, Thermal shock,High/low temperature, Dual 85 aging, Long-term thermal cycling, Step temperature testing, and random vibration.
Product Specification
Product Specification Model Key Parameters
Product Functions Temperature Monitoring PT1000
Pressure Monitoring Diffused silicon pressure core
Liquid Level Monitoring Millimetre-wave radar
Positioning Global GPS/LBS
Physical Characteristics Product Material 316L
Power Supply Lithium Battery
Product Performance Temperature Range/Accuracy -20°C - 99.9°C (±0.3°C)
Pressure Range/Accuracy -0.1MPa - 0.6MPa (±0.5% F.S)
Liquid Level range/Accuracy 0 - 3000mm (±3mm)
Data Storage >30,000 entries
Reliability IP Level IP67
Validity of Battery 3 years
Product Certification CE/ROSH/ II 2G Exib IIBT4 Gb
Network Communication - Global 4G
